7.1 Fatigue Crack Propagation in Stiffened Panels

Download test case files

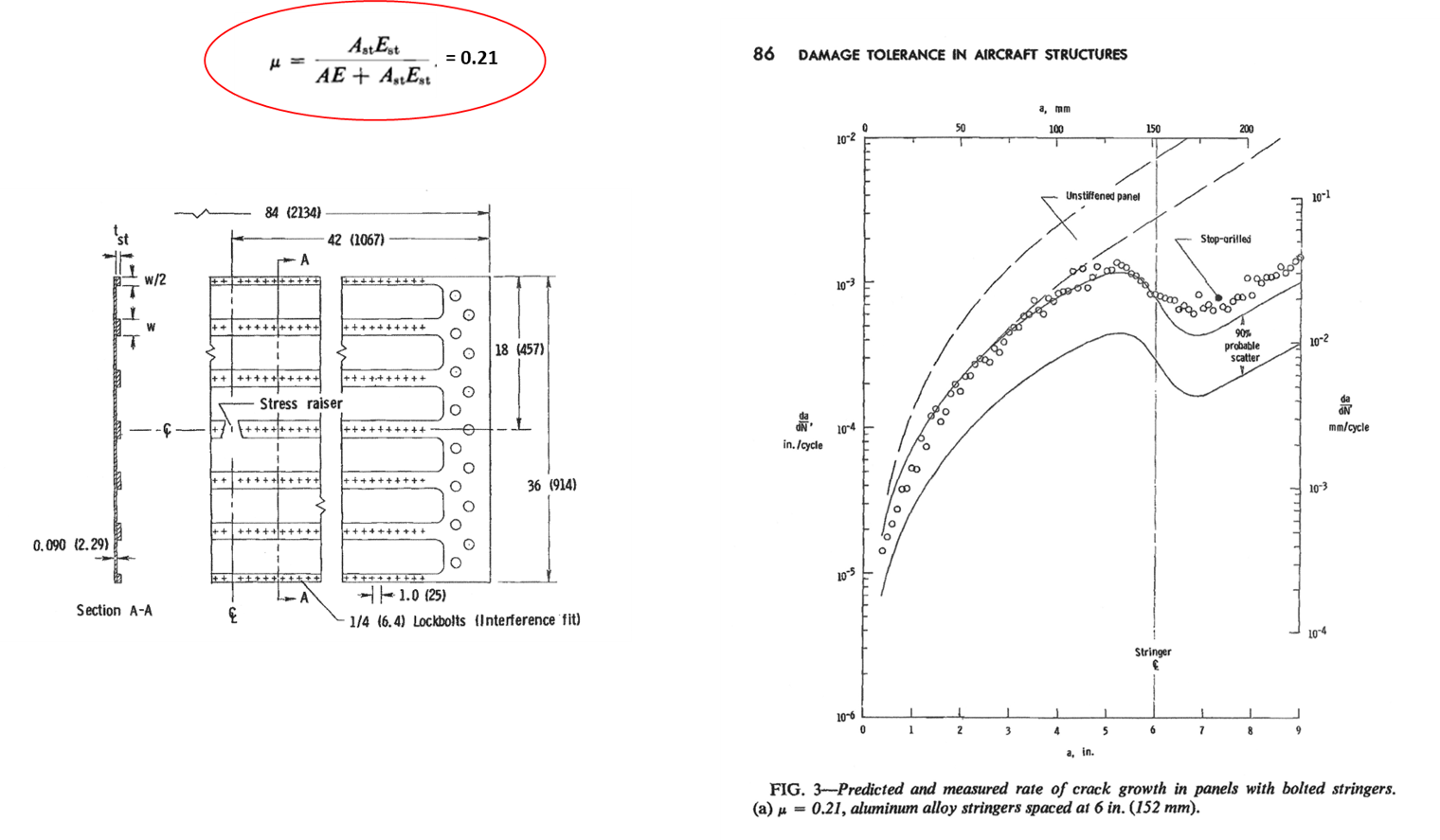

Based on Poe's reference work (Damage Tolerance in Aircraft Structures). An 84-inch (2,134 mm) wide aluminum panel with bolted stringers spaced at 6 inches (152 mm), ¼-inch Hi-Lok lockbolts at 1-inch pitch, skin thickness 0.090 inches (2.29 mm).

The stiffening ratio is defined as: μ = (Ast Est) / (A E + Ast Est)

μ = 0.21

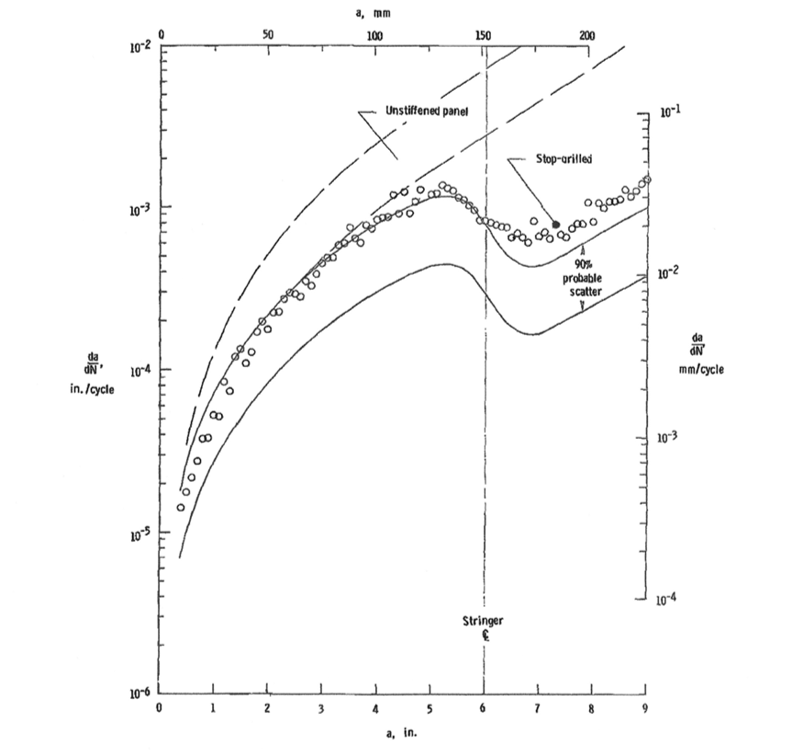

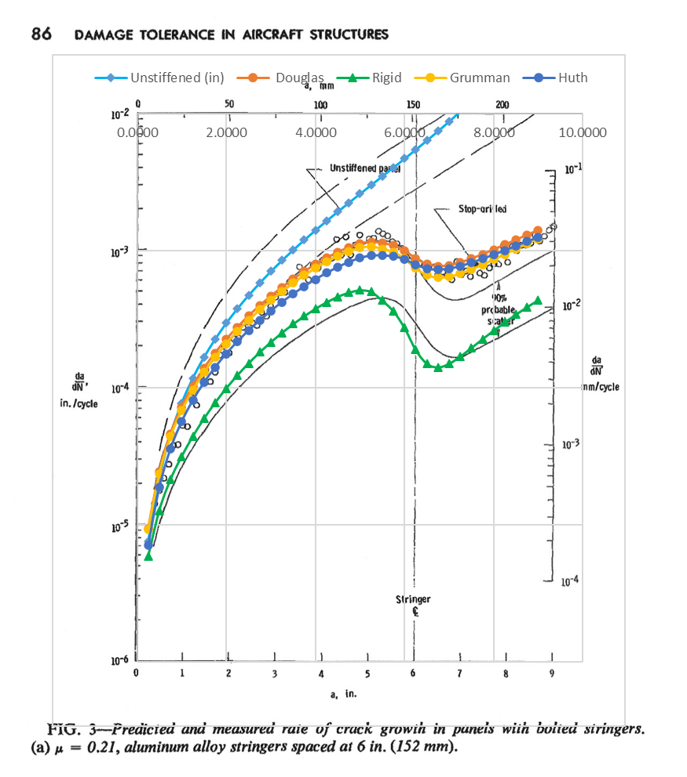

Fatigue Crack Propagation in Stiffened Panels Panel with Bolted Stringers, mu = 0.21, Stringers Spaced 152 mm XdTd vs Test Results

μ = 0.58

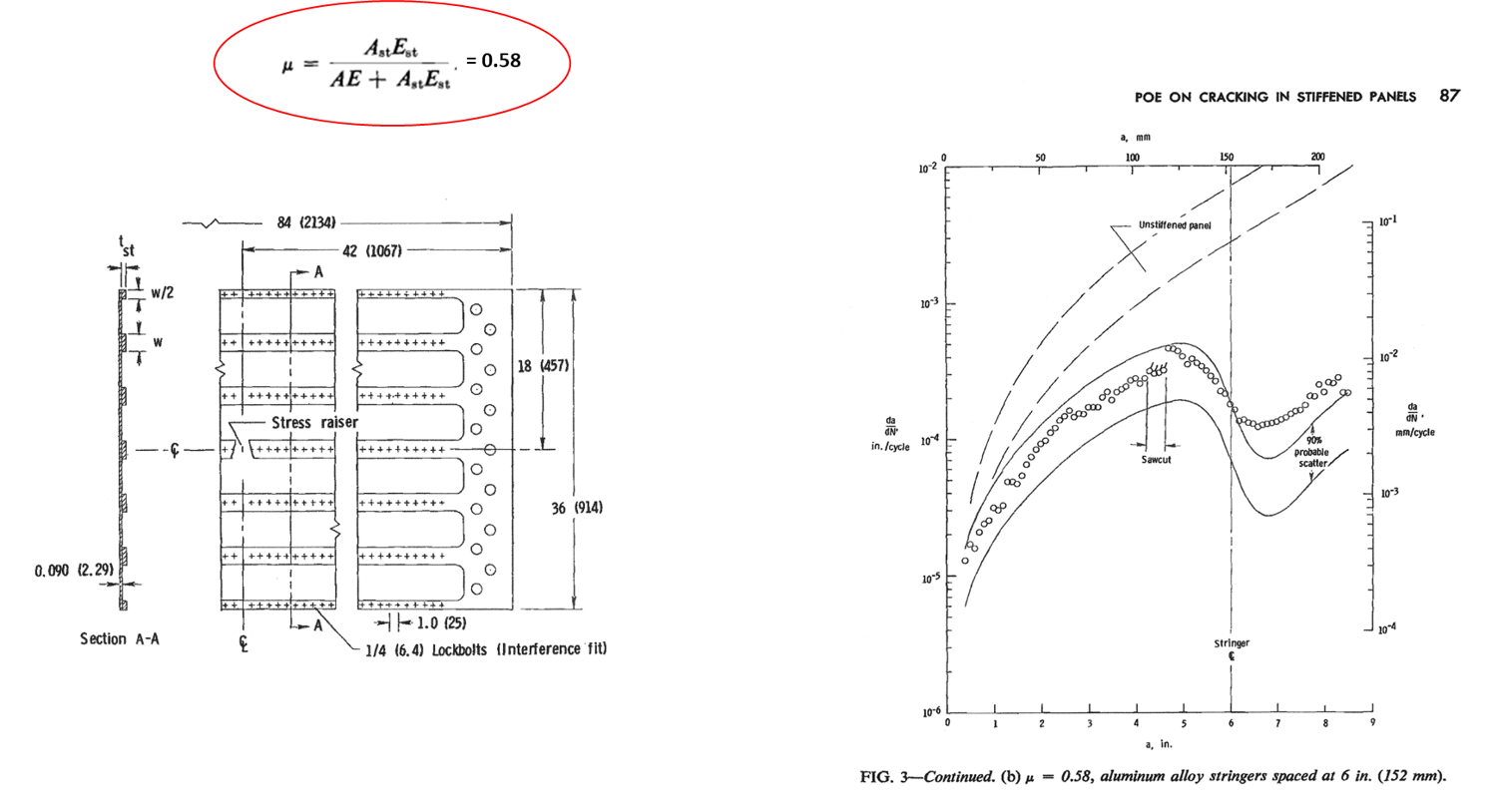

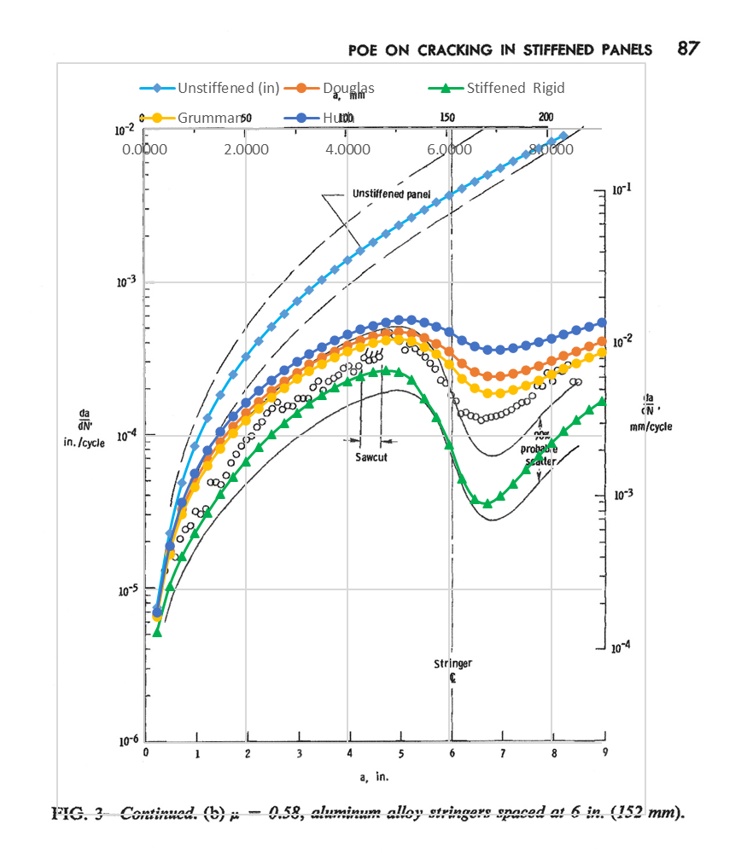

Fatigue Crack Propagation in Stiffened Panels Lockbolted Stringers, mu = 0.58, Stringers Spaced 152 mm XdTd vs Test Results

7.2 Stiffened Panel Residual Strength

Download test case files

Based on T. Swift's work (The Effects of Rivet Yielding on Fracture Strength of Stiffened Structures Containing Cracks, McDonnell Douglas). This benchmark demonstrates that elastic analysis alone is inadequate — elastic-plastic rivet behavior with deformation limits must be modeled.

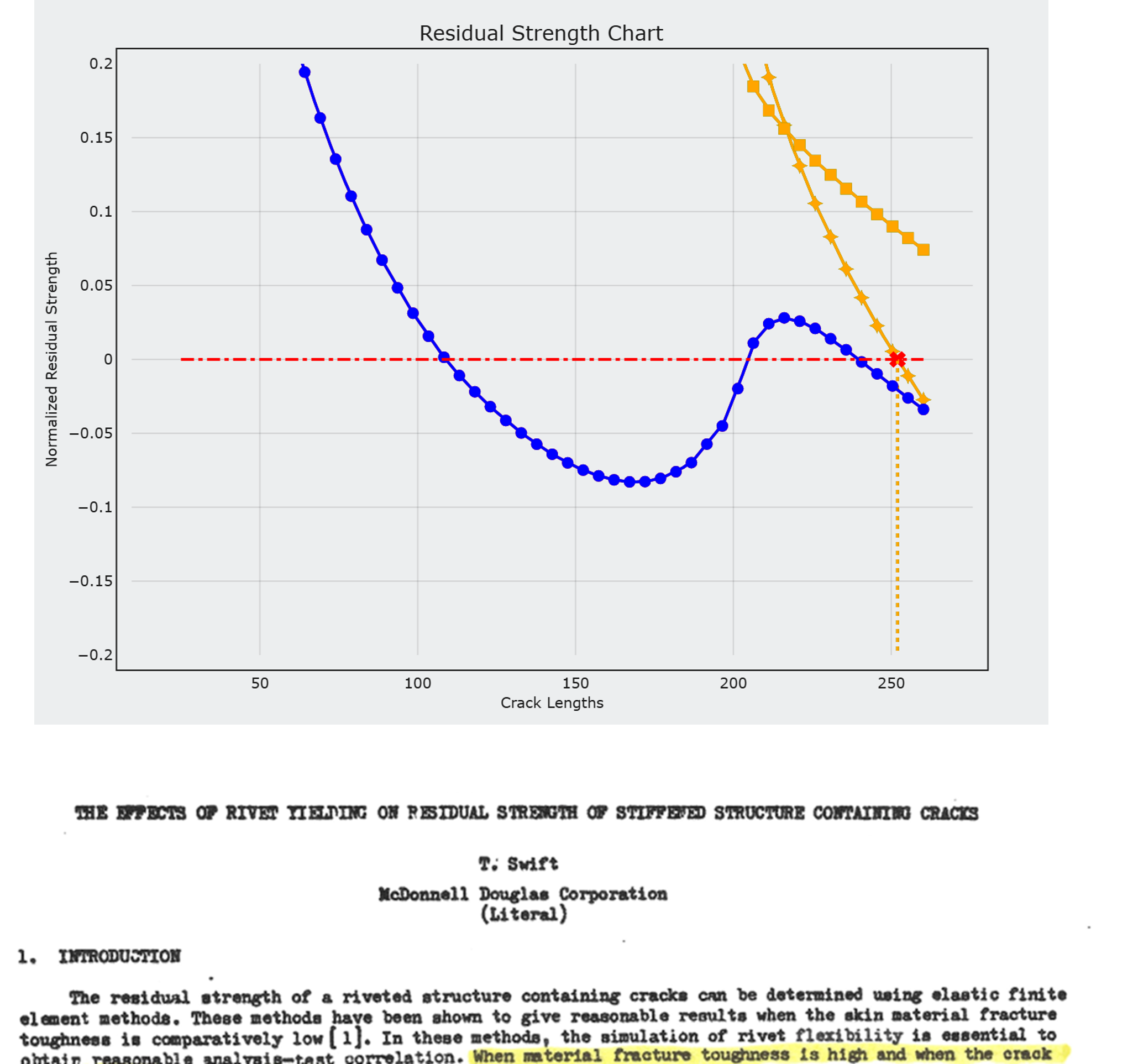

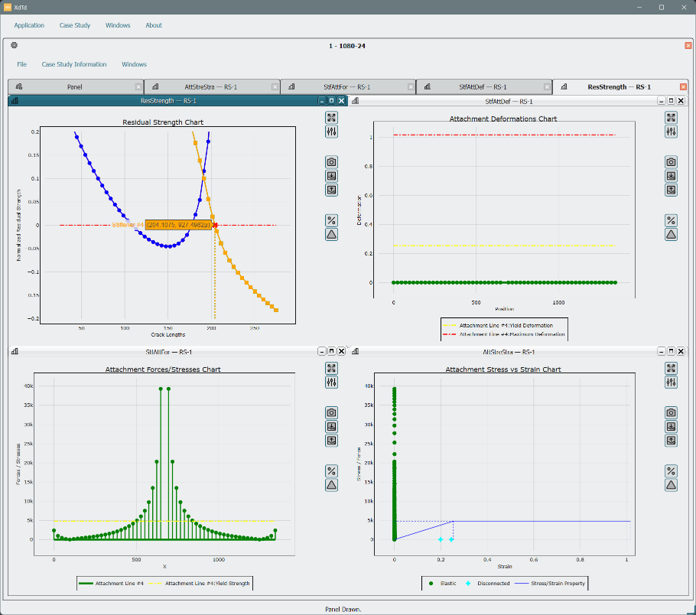

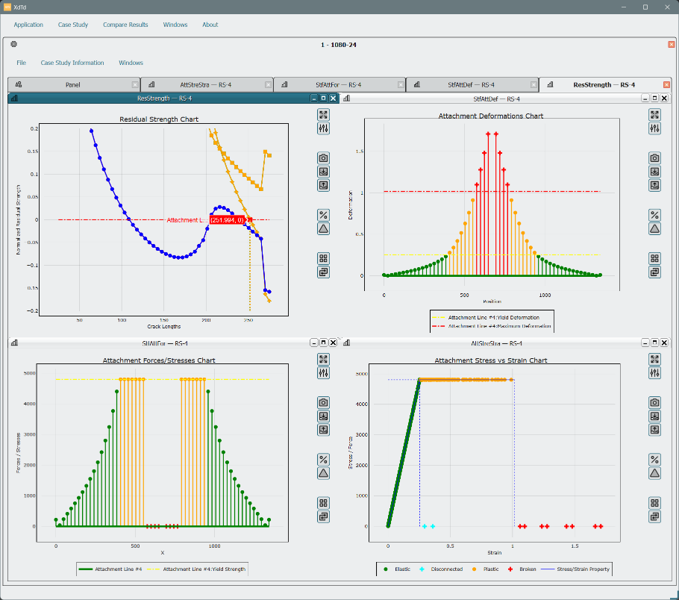

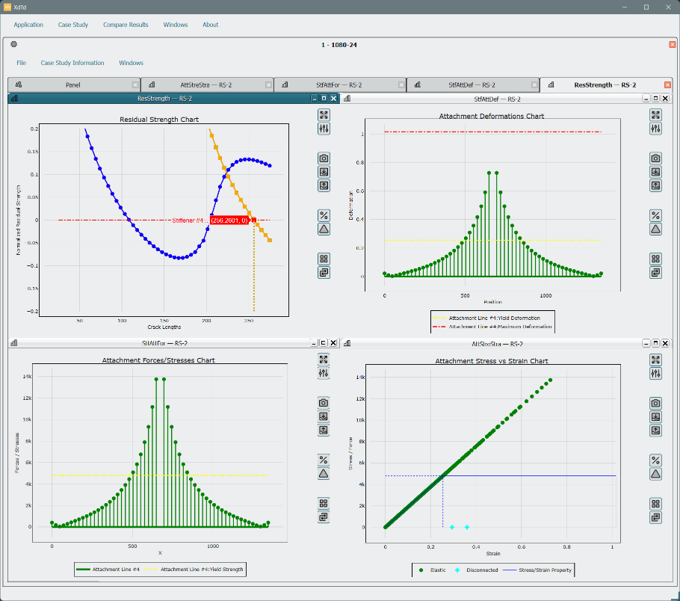

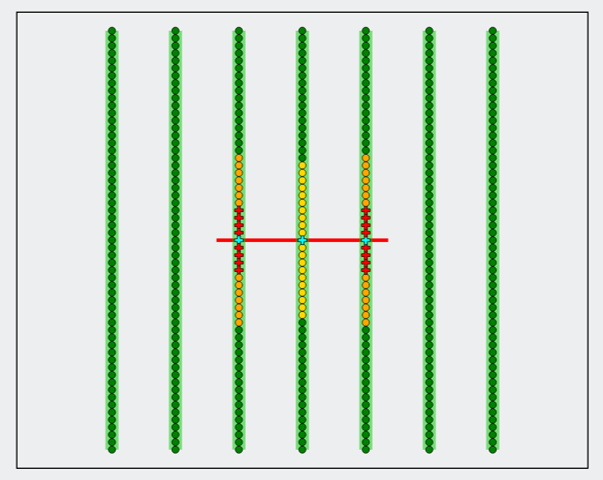

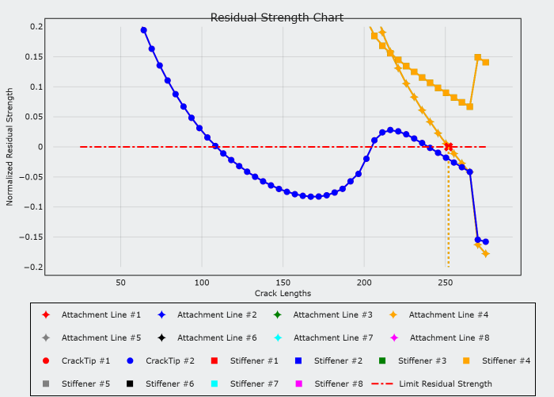

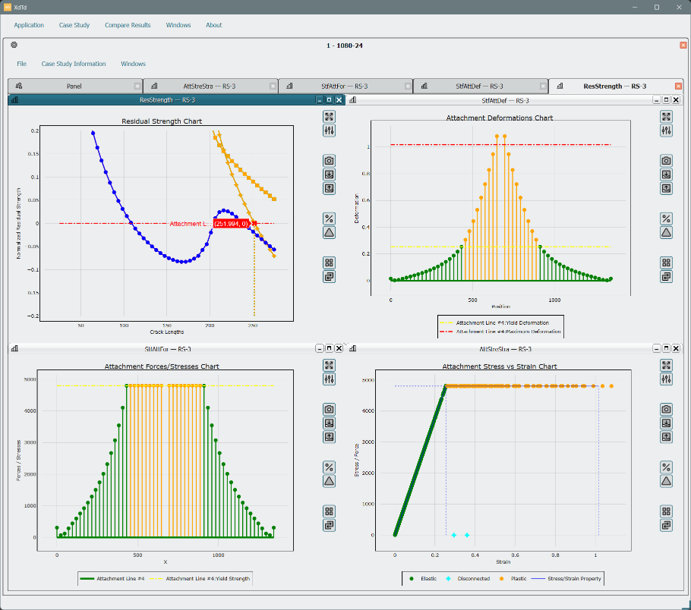

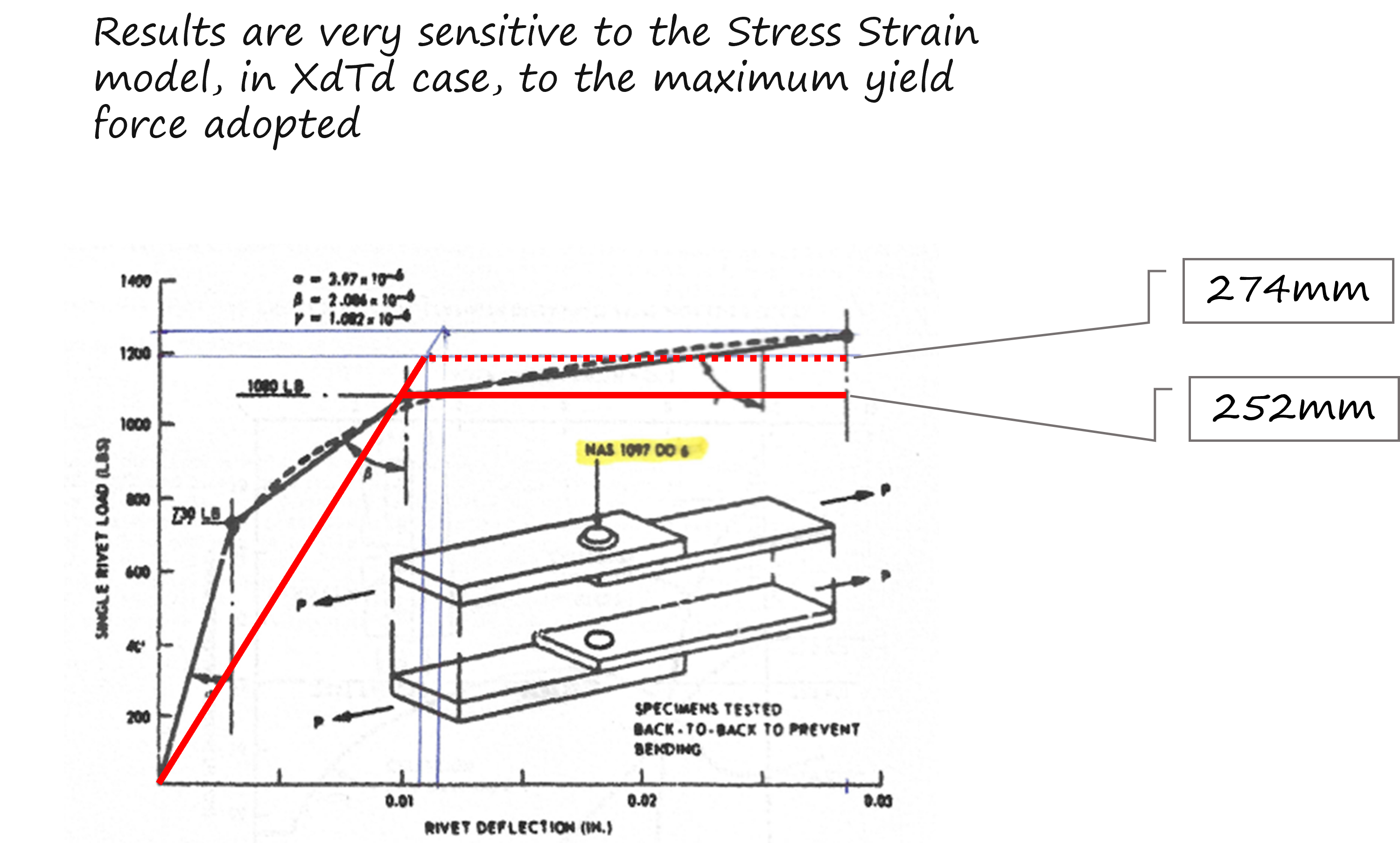

Stiffened Panel Residual Strength Stress-Strain Curve for Riveted Attachments Used in Tests vs XdTd Model Results for Rigid Rivet Behaviour Results for Elastic Rivet Behaviour Results for Elastic-Plastic Rivet Behaviour Final Results - Elastic-Plastic Rivet Behaviour with Attachment Deformation Limit XdTd Predicted Panel Failure Mode - Attachment Line Failure at 253 mm vs 251 mm in Test Results Are Very Sensitive to the Stress-Strain Model Tom Swift Was Right - This Problem Cannot Be Assessed by Elastic Analysis

XdTd accurately predicted:

  • The failure mode: rivet line of the crack-arresting stiffener
  • The critical crack length: 252 mm (vs. 251 mm from the panel test)
